Overview

Basic Info.

Model NO.	MF-PGUV-50W
Wavelength	UV395nm
Specification	210*160*28mm
Material	PC+Alu.
Certification	CE
Housing Colour	Black
Light Source	2835 Chip at 395nm
Temperature Range	-10-+45°c
IP	IP66
Output	LED 50W/100W/200W/300W
Warranty Housing	12 Months
LED Lifetime	50, 000 Work Hours
Warranty	1 Year
Transport Package	Carton
Trademark	MF
Origin	China
HS Code	9405499000
Production Capacity	50000pieces/Year

Product Description

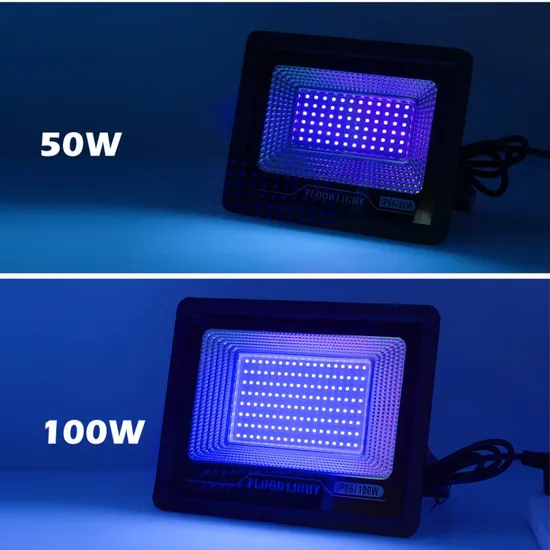

Customizable 3-Second Cure Flood Light IP66 Waterproof 50W/100W/150W 395nm LED Industrial UV Curing Lamp for Printing Medical

Core Advantages: Rapid Production Cycles: Cure UV inks, shadowless adhesives, and coatings within 3 seconds Extreme Environment Proof: IP66 rating withstands rain/dust - perfect for outdoor printing workshops Zero Maintenance: 50,000-hour lifespan with passive cooling (no moving parts) Multi-Position Mounting: Adjustable brackets enable 180° positioning for complex curing tasks

Technical Footnotes

1. Optical Efficiency: 95% UV transmission through quartz glass cover vs. 80% industry average.

2. Power Flexibility: Universal 85-265V input tolerates unstable grid voltages.

3. ECO Impact: 60% lower energy consumption vs. mercury arc lamps.

Industry Applications:

• Electronics: PCB wire bonding, camera module assembly

• Printing: Screen printing, rotary press, UV ink curing

• Quality Control: Fluorescent flaw detection, glass defect inspection

• Medical: Device manufacturing, adhesive curing

• Special Effects: Halloween UV props, haunted house lighting

FAQ:

Q1: Can I get 365nm wavelength instead of 395nm? → Yes! Custom 365nm versions available (specify when ordering).

Q2: How is IP66 rating verified? → Third-party tested against IEC 60529 standards (test reports available).

Q3: What's the MOQ for customized designs? → Standard units: 1+ piece | Custom engraving/printing: 50+ units.

Q4: Does it work in high-humidity environments? → Absolutely. IP66 protection ensures reliable operation in humid/rainy conditions.

Product Description

The MF-PGUV Series delivers industrial-grade UV curing performance with revolutionary 3-second curing speed. Engineered with precision 2835 SMD chips emitting 395-400nm UVA light, these lamps trigger instant photochemical reactions in UV-sensitive materials while ensuring human safety.

Catalogue number	MF-PGUV-50W/100W/150W
Duration Time	N/A
Version	Manual
Colour	Black
Output	LED 50W/100W/200W/300W
Light Source	2835 Chip at 395NM
Active power	50W/100W/200W/300W
Power supply	85-265 V AC 50/60Hz
Dimming mode	NO
Temperature range	-10+45°C
Material	PC+Alu.
IP	IP66
Housing Warranty	12 Months
LED lifetime	50,000 work hours

Features

Europe and the United States hotmodels CB CE certification Patented products can be customized Whole picture printing laser engraving Hanging/wall hanging/ceilinghanging/side hanging Customized patterns2835 Chip at 395NM/365NMCustomized LOGO for small orders
